| Velocity | |
|---|
| Accuracy | 0.1 km/h (averaged over 4 samples) |
|---|
| Units | km/h or mph |
|---|
| Update Rate | 25 Hz |
|---|
| Maximum Velocity | 1600 km/h |
|---|
| Minimum Velocity | 0.5 km/h |
|---|
| Resolution | 0.01 km/h |
|---|
| Distance | |
|---|
| Accuracy | 0.05 % (<50 cm per km) |
|---|
| Units | m or ft |
|---|
| Update Rate | 25 Hz |
|---|
| Resolution | 1 cm |
|---|
| Absolute Positioning | |
|---|
| Accuracy | 2 m (95 % CEP1) |
|---|
| Height accuracy | 10 m (95 % CEP1) |
|---|
| Resolution | 1 cm |
|---|
| Update Rate | 25 Hz |
|---|
| Time | |
|---|
| Accuracy | 0.01 s |
|---|
| Resolution | 0.01 s |
|---|
| Acceleration | |
|---|
| Accuracy | 1 % |
|---|
| Resolution | 0.01 g |
|---|
| Maximum | 4 g |
|---|
| Update Rate | 25 Hz |
|---|
| Heading | |
|---|
| Accuracy | 0.1° |
|---|
| Resolution | 0.01° |
|---|
| Input Voltage | 5 V (USB compliant 4.4–5.3 V) to unit |
| Power | With battery:<7 W charge using 1.5A or greater USBWithout battery:<3 W using 0.9A or greater USB |

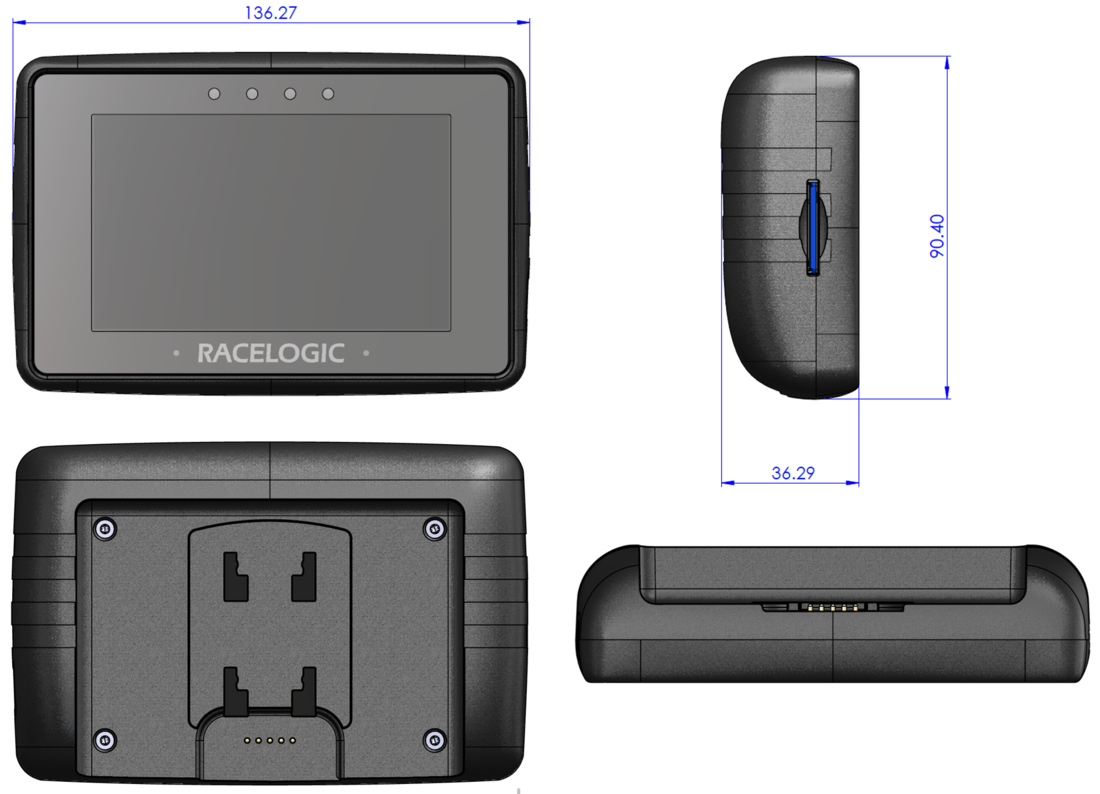

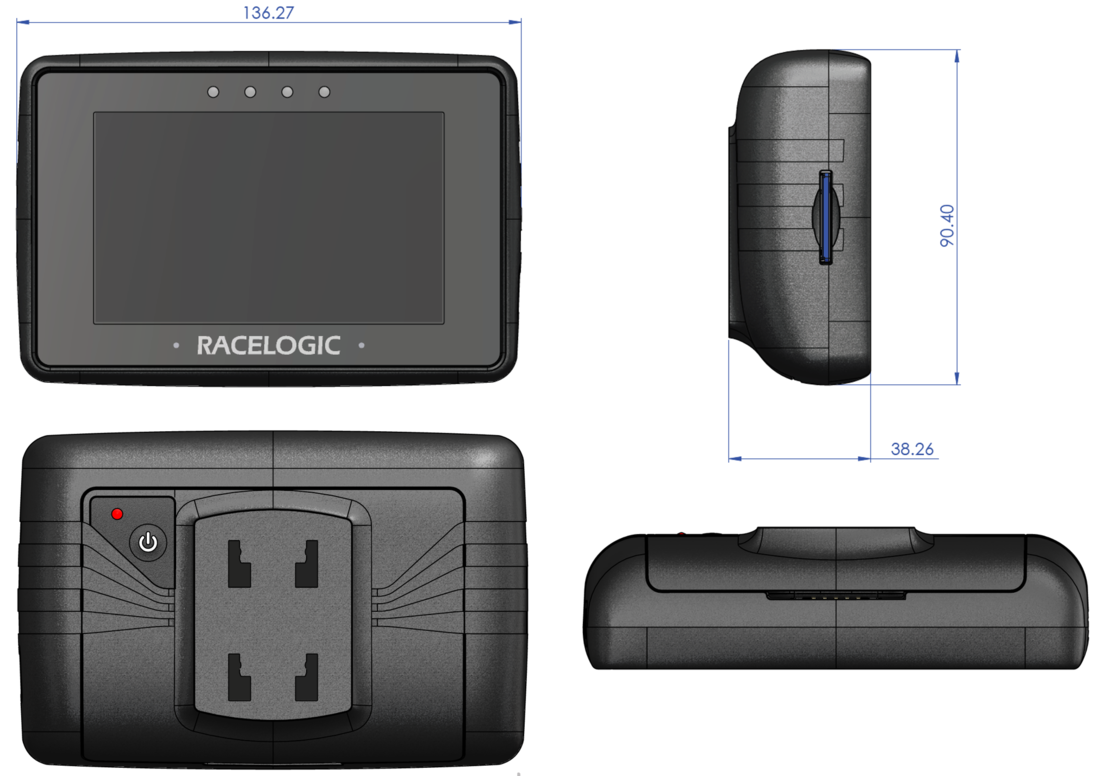

| Size | With battery: 136.3 x 90.4 x 38.3 mmWithout battery: 136.3 x 90.4 x 36.3 mm |
| Weight | With battery: 336 gWithout battery: 226 gBattery alone: 110 g |
| Operating Temperature | -20°C to +50°C |
| Storage Temperature | -30°C to +80°C |
| Mounting | Richter mounting system or ¼ 20 TPI UNC |

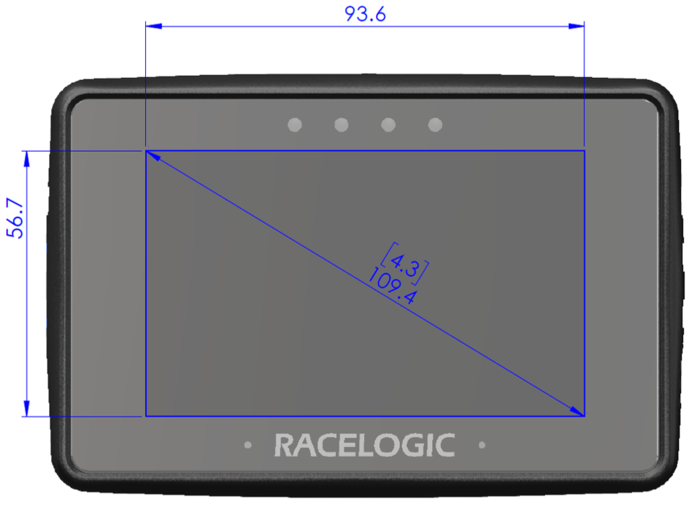

| Size | 4.3” TFT Capacitive Touch |
| Resolution | 480 x 800 pixels |
| TFT LCD Display Colours | 262K colours (18 bit) |
Richter mounting system only
| Type |
SD Card (8 GB supplied) |
| Recording Time |
120 hours on SD Card supplied |
| Capacity | 11 Wh |
| Input/Charging Voltage | 4.4 to 5.3 V |
| Minimum Input | Stand alone charging: 1 ACharging connected to unit: 1.5 A |
| Battery Life | 6 hours |
| Charging Method | Stand alone using USB Micro-B or connected to a unit |
| Charging Time | 95% charge at 3.5 hours of charging standalone (can be longer when connected to the unit, depending on unit power demands and the power supply) |
| Mass | 110 g |
| Size | 102 mm x 73.5 mm x 19 mm (w x h x d) |
Definitions
1 Circle of Error Probable (CEP): 95 % of the time the position readings will fall within a circle of the stated diameter
